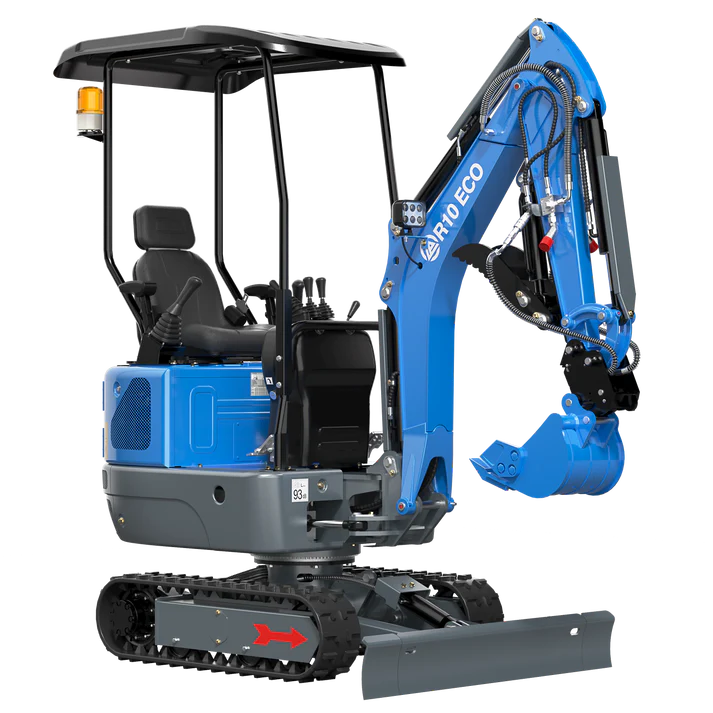

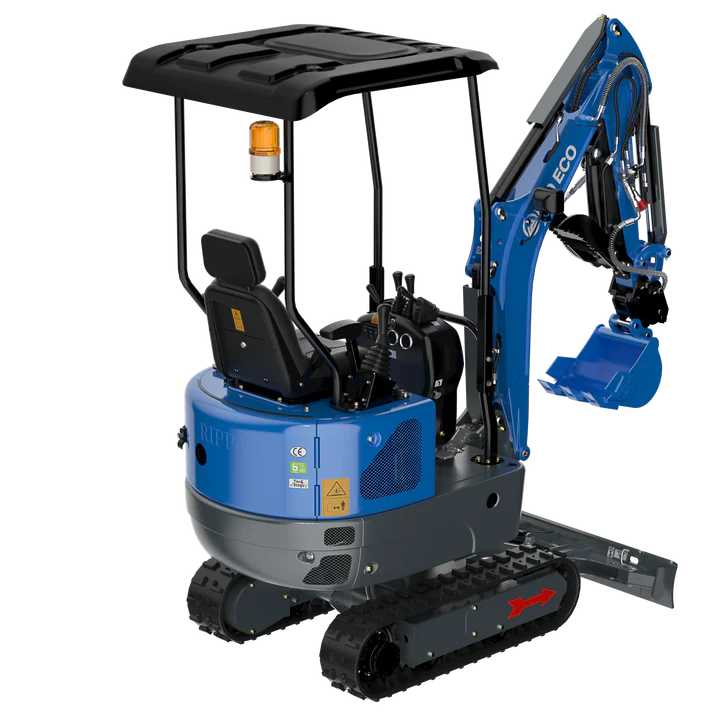

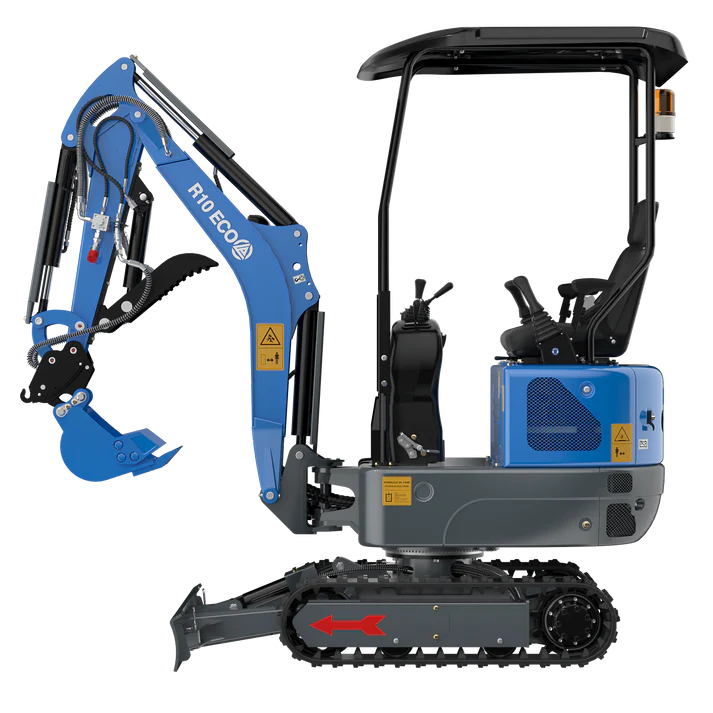

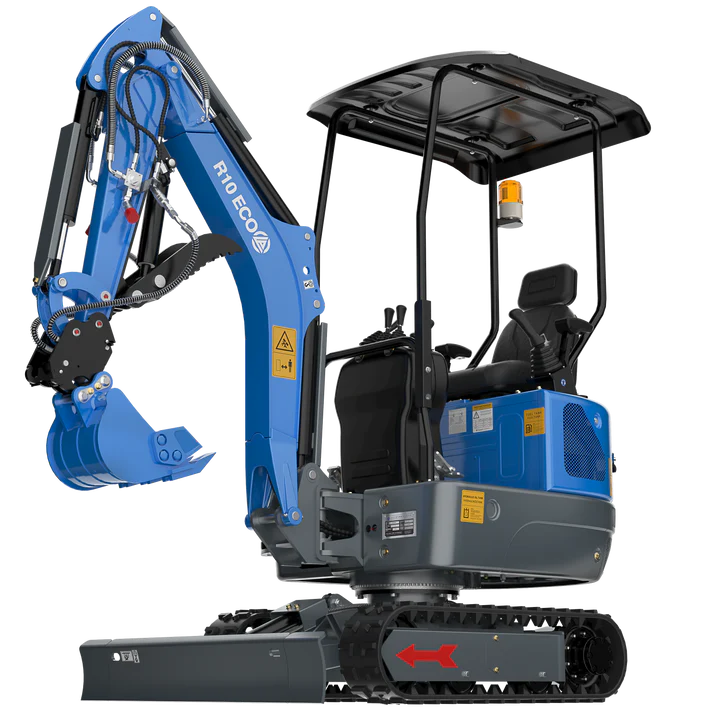

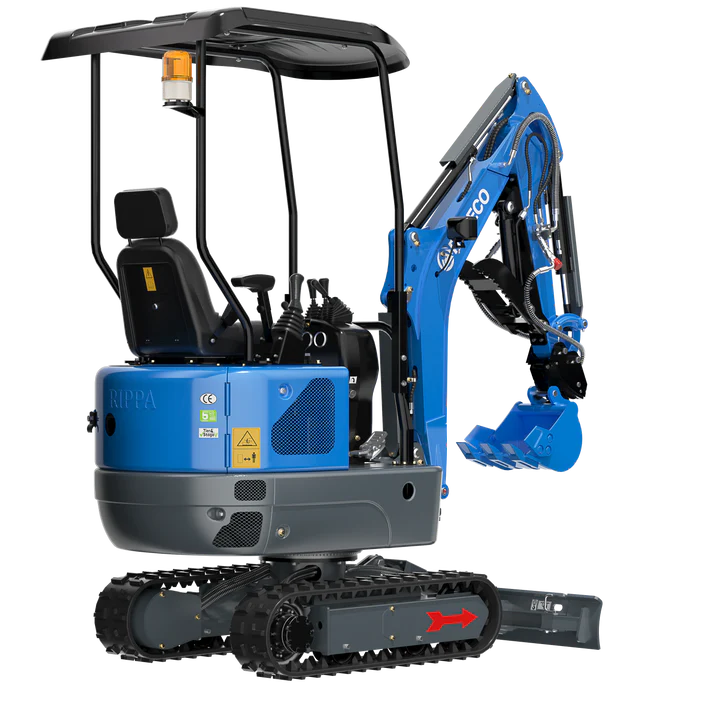

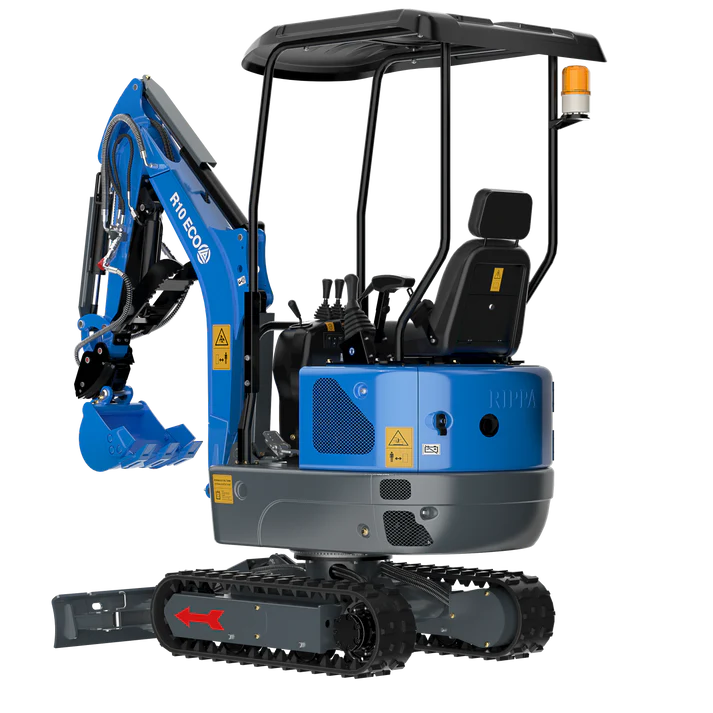

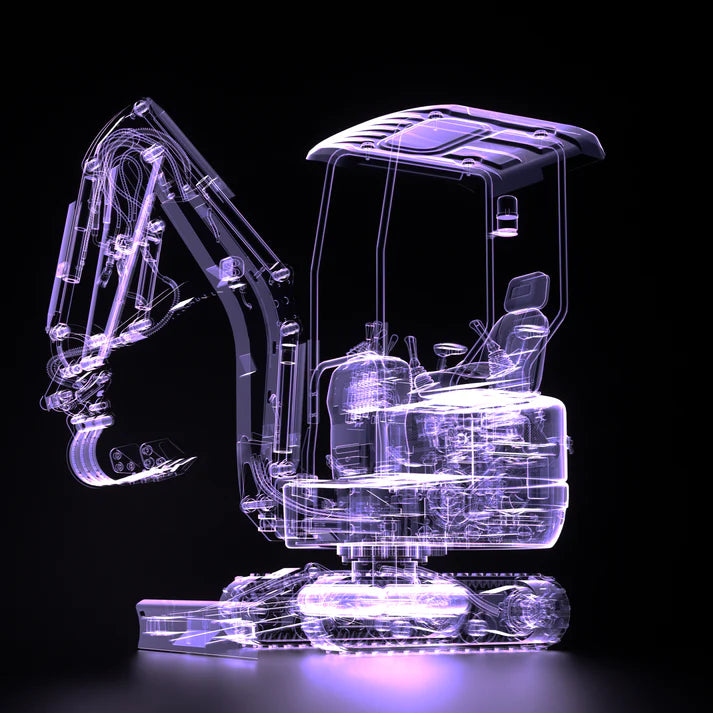

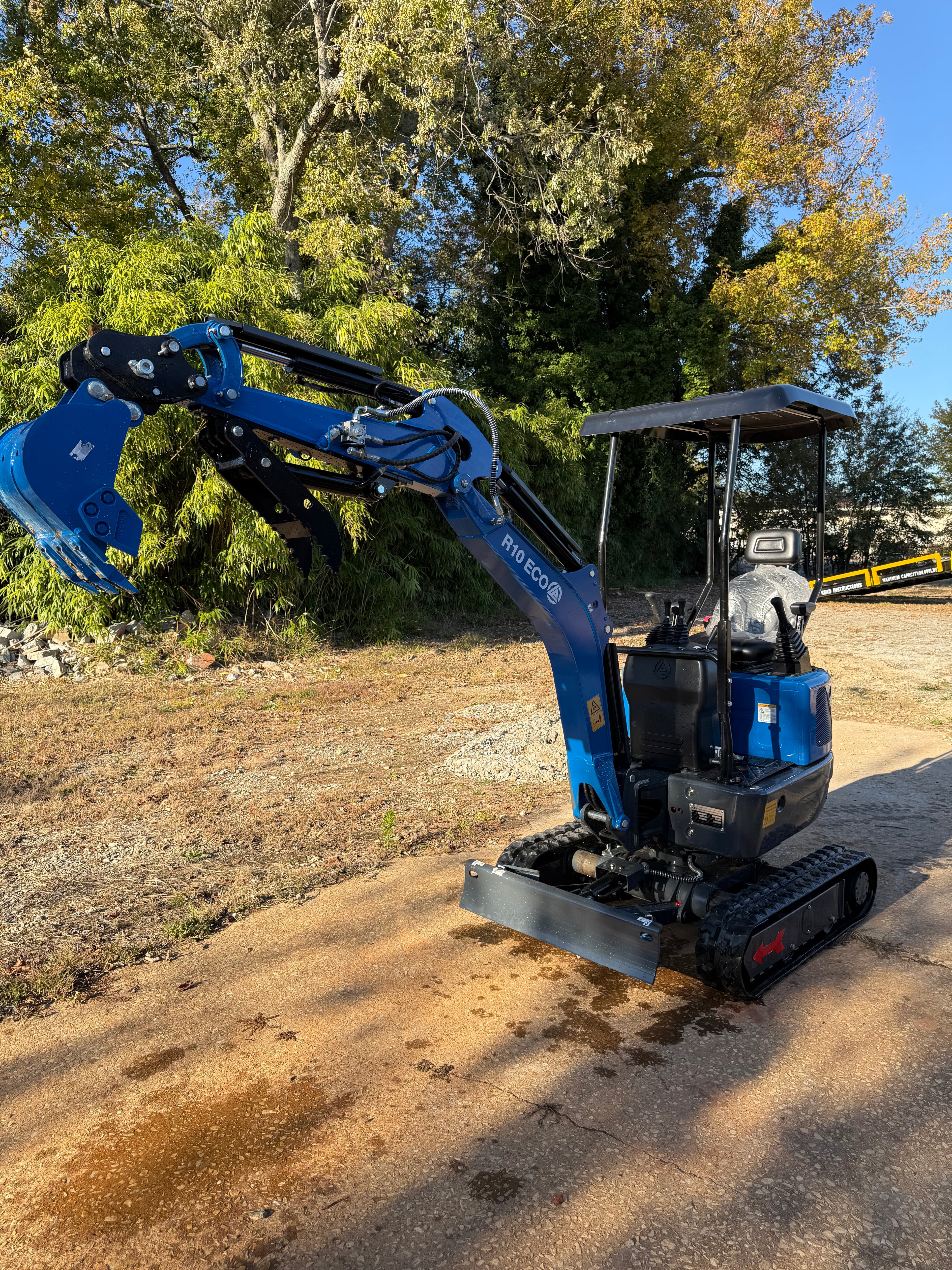

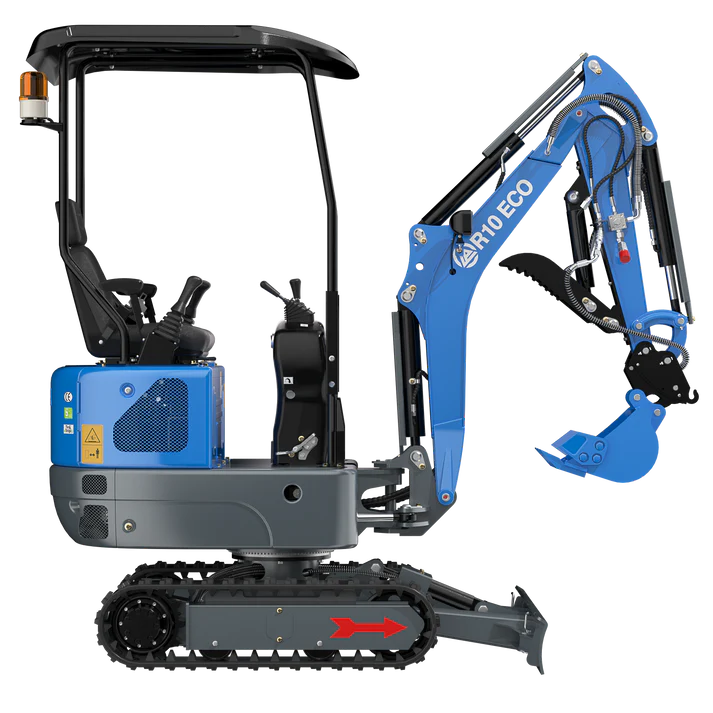

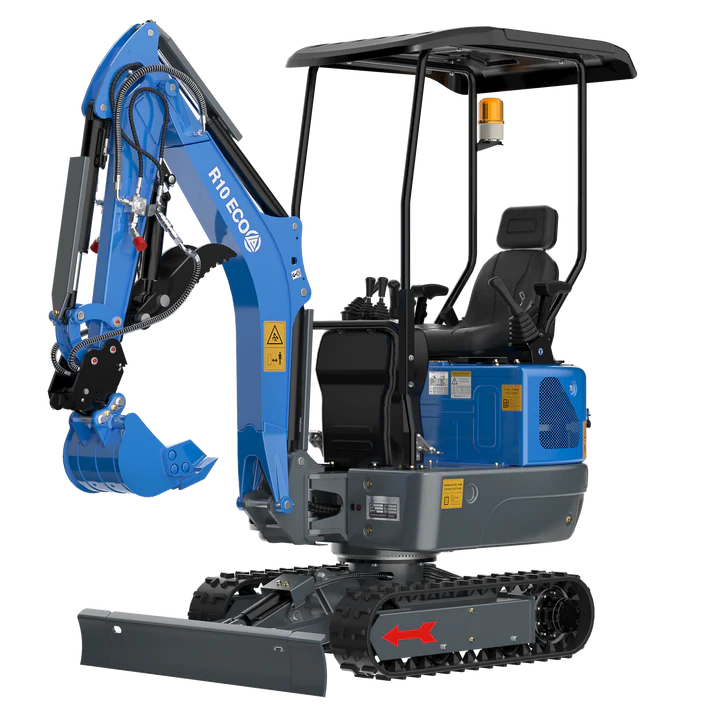

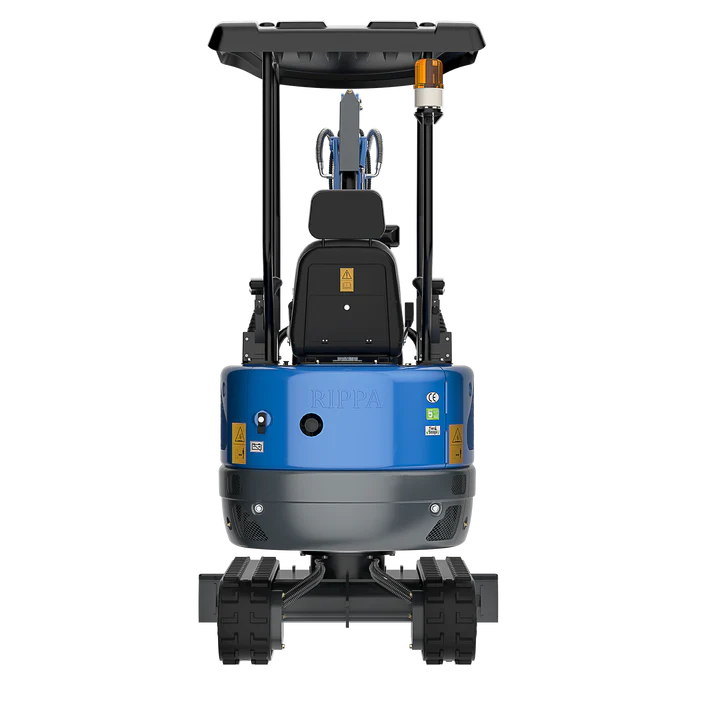

Rippa R10 ECO Mini Excavator

$5,900.00 USD

The R10 ECO is a powerful and versatile mini excavator, perfect for construction, landscaping, and private projects. Thanks to its flexible configuration options, it can be adapted to your specific needs.

Four upgrades to the base model to choose from:

✔ R10 ECO with adjustable undercarriage – Adjustable track width and increased flexibility

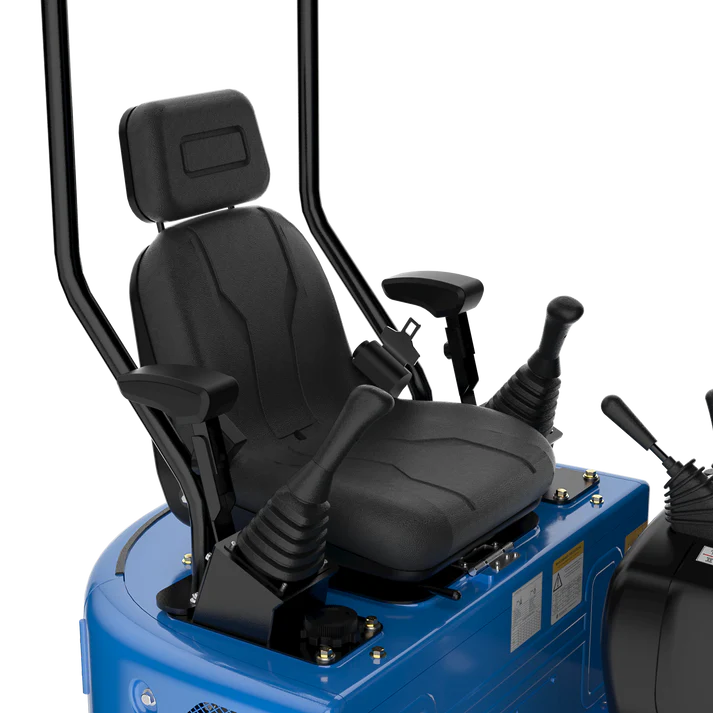

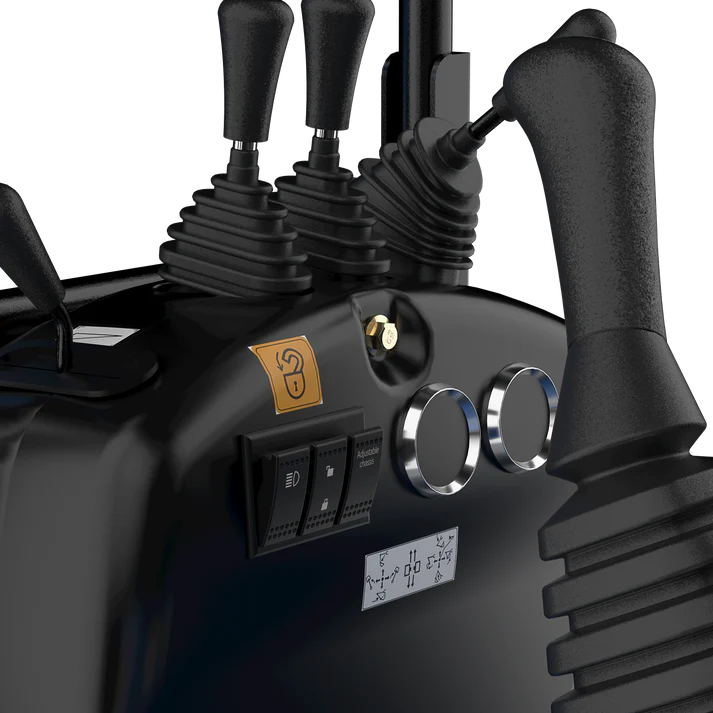

✔ R10 ECO with joystick side control – Precise operation for demanding tasks

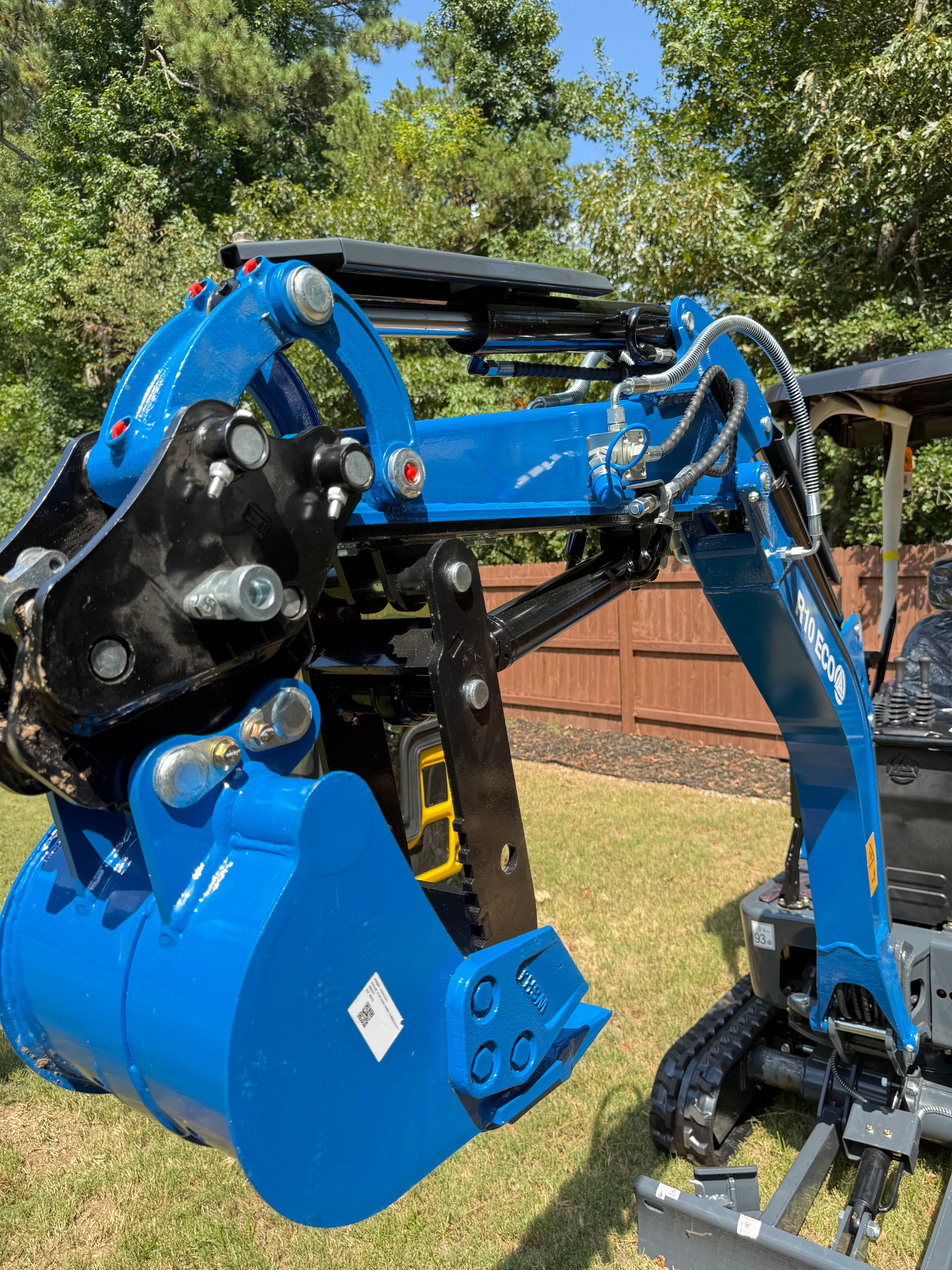

✔ R10 ECO with articulated boom – More movement for hard-to-reach areas

Fully customizable:
All models come standard with a 30 cm toothed bucket, 1-cylinder Koop engine, fixed boom, and front control.
You can select your desired upgrades directly on the product page.
Additional accessories, such as extra buckets, grapples, or quick couplers, can be found in the “Accessories” section on our website.

R10 ECO – Performance Data Koop

Basic Performance Data	EU / US
Operating weight	978 kg / 2,156 lb
Bucket volume	0.014 m³ / 0.49 ft³
Travel speed	0–1.5 km/h / 0–0.93 mph
Gradeability	30 %
Ground pressure	25.53 kPa / 25.53 psi
Max breakout force	9.2 kN
Max reach	3,233 mm / 127.3 in
Max digging depth	1,833 mm / 72.2 in
Max digging height	3,021 mm / 118.9 in
Max dumping height	2,247 mm / 88.5 in
Max swing angle	121°
Track width adjustment	912–1,212 mm / 35.9–47.7 in

Engine	EU / US
Model / Make	Yoop 192F
Max horsepower	10.4 HP / 10.2 hp
Max power	7.5 kW
Max engine speed	3,000 rpm
Displacement	0.499 L / 0.133 gal
Number of cylinders	1
Cooling system	Air-cooled
Engine oil	1.325 L / 0.35 gal
Fuel type	Diesel (No. 0 / -10)
Fuel consumption (theoretical)	0.8–1.2 L/h / 0.21–0.32 gal/h

Dimensions	EU / US
Transport length	2,430 mm / 95.7 in
Transport width	912 mm / 35.9 in
Transport height	2,201 mm / 86.7 in
Counterweight ground clearance	361 mm / 14.2 in
Bucket width	300 mm / 11.8 in
Boom length	1,477 mm / 58.1 in
Arm length	800 mm / 31.5 in

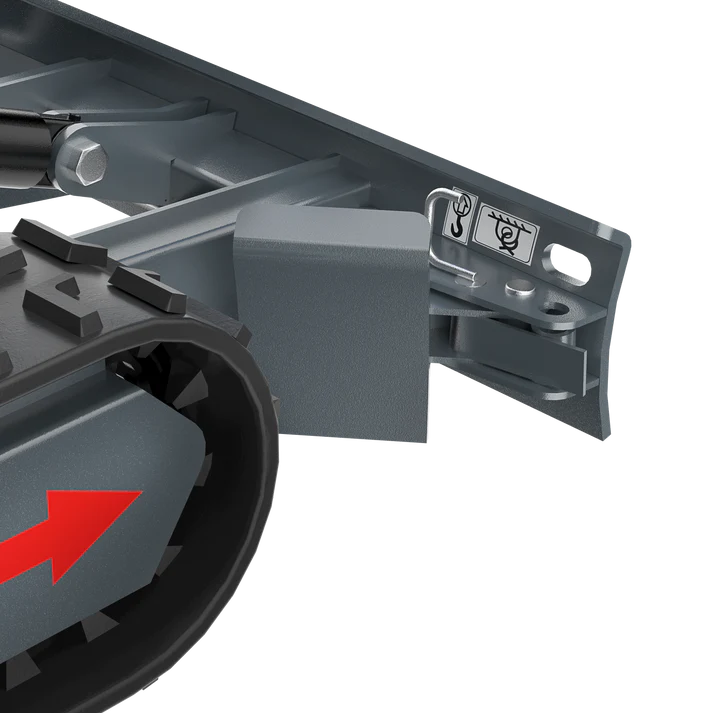

Dozer blade width	912–1,212 mm / 35.9–47.7 in

Hydraulic System	EU / US
Pump type / Model	306 (Tianjin Walking / Shengjie)
Max flow	18 L/min
Control valve	2-2+5 joints (Tengfei)
Rated pressure	18 MPa
Max pressure	20 MPa
Drive motor	BM6-315 (Paiyi/Zhenjiang Dali) – 315
Swing motor	BM2-315 – 315

R10 ECO – Performance Data Kubota

Basic Performance Data	EU / US
Operating weight	1,000 kg / 2,789 lb
Bucket volume	0.014 m³ / 0.49 ft³
Travel speed	0–1.5 km/h / 0–0.93 mph
Gradeability	30 %
Ground pressure	25.53 kPa / 25.53 psi
Max breakout force	9.2 kN
Max reach	3,233 mm / 127.3 in
Max digging depth	1,833 mm / 72.2 in
Max digging height	3,021 mm / 118.9 in
Max dumping height	2,247 mm / 88.5 in
Max swing angle	121°
Track width adjustment	912–1,212 mm / 35.9–47.7 in

Engine	EU / US
Model / Make	Kubota Z482
Max horsepower	11 HP / 11 hp
Max power	8.2 kW
Max engine speed	3,000 rpm
Displacement	0.497 L / 0.13 gal
Number of cylinders	2
Cooling system	Water-cooled
Engine oil	1.2 L / 0.32 gal
Fuel type	Diesel (No. 0 / -10)
Fuel consumption (theoretical)	0.8–1.2 L/h / 0.21–0.32 gal/h

Dimensions	EU / US
Transport length	2,430 mm / 95.7 in
Transport width	912 mm / 35.9 in
Transport height	2,201 mm / 86.7 in
Counterweight ground clearance	361 mm / 14.2 in
Bucket width	300 mm / 11.8 in
Boom length	1,477 mm / 58.1 in
Arm length	800 mm / 31.5 in
Dozer blade width	912–1,212 mm / 35.9–47.7 in

Hydraulic System	EU / US
Pump type / Model	306 (Tianjin Walking / Shengjie)
Max flow	18 L/min
Control valve	2-2+5 joints (Tengfei)
Rated pressure	18 MPa
Max pressure	20 MPa
Drive motor	BM6-315 (Paiyi/Zhenjiang Dali) – 315
Swing motor	BM2-315 – 315

Local stock in Gainesville, GA
