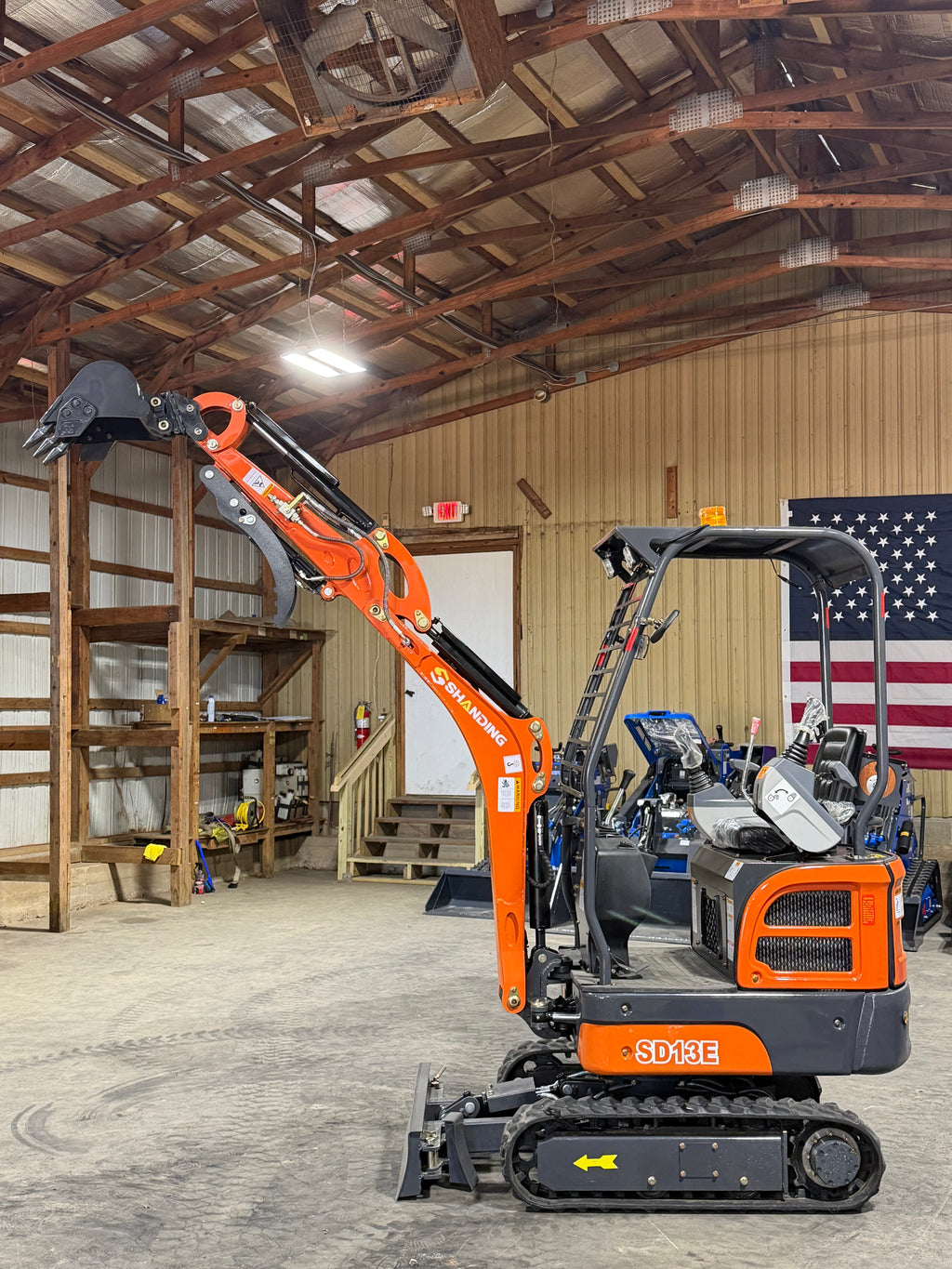

Shanding SD13E Mini Excavator

SHANDING SD13E✨

Small machine, but it’ll do a lot of work.

• Yanmar 3TNV74F Diesel Engine
• 2,491 lb Operating Weight
• 5’9” Max Digging Depth
• 10’7” Max Digging Reach
• 10’5” Ground Reach
• 10’4” Max Digging Height
• 7’4” Dump Height
• 6.5 kN Bucket Digging Force
• 32.7”–40.9” Track Width
• 7.1” Wide Tracks
• 6.7” Ground Clearance
• 2.1 MPH Travel Speed
• 11 RPM Swing Speed
• 30° Gradeability
• Boom Swing — 35° Left / 57° Right
• 24 L/min Main Pump Flow
• 16 MPa Working Pressure
• 0.02 m³ Bucket

Overall Size:
9’4” Long × 32.7”–40.9” Wide × 7’3” Tall

Blade:
32.3”–40.6” Wide
15.4” Max Lift
10.2” Below Ground

Good size for tight yards, fence lines, drainage, trenching, landscaping, small stump work and general property work.

Simple diesel mini excavator. Small enough to get into tight spots, enough reach and digging depth to actually get work done.

SHANDING SD13E — FULL SPECS细节版（改动用）

ENGINE

• Yanmar 3TNV74F Diesel Engine
• Engine Power: 10.3 kW @ 2,400 RPM
• Working Hydraulic Pressure: 16 MPa
• Main Pump Flow: 24 L/min

MACHINE WEIGHT

• Operating Weight: 2,491 lbs (1,130 kg)

OVERALL MACHINE DIMENSIONS

• Overall Length: 9’4” (2,840 mm)
• Overall Height: 7’3” (2,200 mm)
• Upper Platform Width: 33.5” (850 mm)
• Overall Track Width: 32.7” / 40.9” (830 / 1,040 mm)
• Track Shoe Width: 7.1” (180 mm)
• Track Length: 48.0” (1,220 mm)
• Lower Machine Length: 60.2” (1,530 mm)
• Minimum Chassis Ground Clearance: 6.7” (170 mm)
• Rear Ground Clearance: 16.5” (420 mm)
• Rear Swing Radius: 34.3” (870 mm)
• Minimum Front Swing Radius: 48.8” (1,240 mm)
• Control Lever Top Height: 86.2” (2,190 mm)
• Arm Height: 40.6” (1,030 mm)

DIGGING PERFORMANCE

• Maximum Digging Reach: 10’7” (3,220 mm)
• Maximum Ground Digging Reach: 10’5” (3,180 mm)
• Maximum Digging Depth: 5’9” (1,760 mm)
• Maximum Digging Depth Radius: 59.1” (1,500 mm)
• Maximum Digging Height: 10’4” (3,140 mm)
• Maximum Digging Height Radius: 57.9” (1,470 mm)
• Maximum Dump Clearance: 7’4” (2,240 mm)
• Minimum Dump Height: 26.0” (660 mm)
• Minimum Dump Height Radius: 44.5” (1,130 mm)
• Maximum Vertical Digging Depth: 42.5” (1,080 mm)
• Maximum Vertical Digging Depth Radius: 8’10” (2,680 mm)
• Minimum Ground Digging Radius: 37.0” (940 mm)
• Maximum Leveling Radius: 8’0” (2,440 mm)

BUCKET / DIGGING FORCE

• Bucket Capacity: 0.02 m³
• Maximum Bucket Digging Force: 6.5 kN

BOOM SWING

• Left Boom Swing: 35°
• Right Boom Swing: 57°

DOZER BLADE

• Blade Width: 32.3” / 40.6” (820 / 1,030 mm)
• Blade Height: 8.7” (220 mm)
• Maximum Blade Height Above Ground: 15.4” (390 mm)
• Maximum Blade Depth Below Ground: 10.2” (260 mm)

TRAVEL / UNDERCARRIAGE

• Travel Speed: 2.1 MPH (3.4 km/h)
• Gradeability: 30°
• Ground Pressure: 35 kPa
• Track Shoe Width: 7.1” (180 mm)
• Overall Track Width: 32.7” / 40.9” (830 / 1,040 mm)
• Minimum Ground Clearance: 6.7” (170 mm)

HYDRAULIC / SWING PERFORMANCE

• Hydraulic Working Pressure: 16 MPa
• Main Pump Flow: 24 L/min
• Platform Swing Speed: 11 RPM
• Maximum Bucket Digging Force: 6.5 kN

QUICK NUMBERS

2,491 LB MACHINE
YANMAR 3TNV74F DIESEL
6’4” DIGGING DEPTH
10’7” MAX REACH
7’4” DUMP HEIGHT
32.7”–40.9” OVERALL TRACK WIDTH
24 L/MIN MAIN PUMP FLOW
16 MPA WORKING PRESSURE
6.5 KN BUCKET DIGGING FORCE
35° LEFT / 57° RIGHT BOOM SWING
