LS Tractor · XJ Series
XJ2025H
Small Compact Tractors
On sale, call for pricing ↗Manufacturer photos may show optional equipment. Shared LS reference angles are identified in their captions.

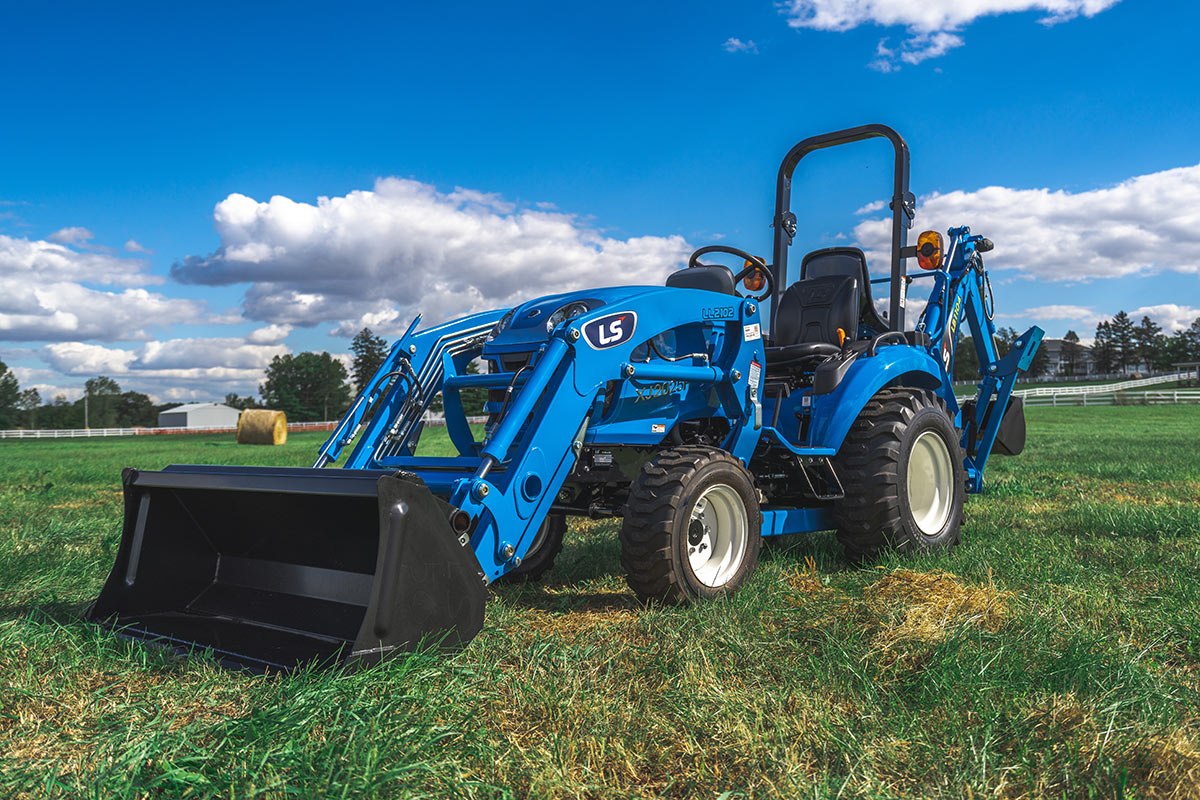

Explore the LS XJ2025H from the XJ Series. Review the manufacturer's photos, engine and drivetrain details, and full specifications, then talk with our Athens team about the configuration for your work.
- Engine power · gross
- 24.4 HP
- PTO power
- 18.5 HP
- Engine model
- Mitsubishi S3L2
- Transmission
- Hydrostatic Drive
Official LS Tractor dealer in Athens, Georgia.
255 Collins Industrial Blvd
The details that matter
Key features.
- Four-wheel drive
- Selectable PTO output
- Mid-mounted PTO provision
- Hydraulic power steering
- Folding rollover protection structure
- Three-point hitch
- Accessible hitch controls
- Supportive operator seating
- Rubber-surfaced operator platform
- Accessible fuel filling
Know your machine
Specifications.
LS manufacturer reference specifications. Cab, transmission, tires and attachments depend on the selected configuration. Model suffixes and measurement units are retained below.
Engine
| Type | 3-cylinder, Indirect-injection, Water-cooled |
|---|---|
| Model (Tier 4) | Mitsubishi S3L2 |
| Engine HP (Gross) | 24.4 |
| PTO HP | 18.5 |
| Rated Speed (RPM) | 2,500 |
| Displacement (cu. in) | 80.4 |
| Fuel Tank Capacity (gal) | 6.6 |
| Alternator (V-A) | 12V – 50 Amps |
Drive Train
| Transmission Type | Hydrostatic Drive |
|---|---|
| No. of Speed | 2 Ranges |
| Brakes | Wet, Multi-disc |
| Steering | Hydrostatic Power Steering |
PTO
| Type | Independent |
|---|---|
| Mid PTO | Standard (2000 rpm) |
| Rear PTO | Standard (540 rpm) |
Hydraulic System
| Control System | Manual Position |
|---|---|
| Implement pump (gpm) | 5.9 |
| Steering pump (gpm) | 2.6 |
| Total flow (gpm) | 8.5 |
| Category, 3 pt hitch | CAT I |
| Hitch Lift capacity, lbs (Hitch end) | 1,433 |
Dimension
| Overall length (with 3pt, in.) | 103 |
|---|---|
| Overall width with tires (in.) | 44.9 |
| Wheelbase (in.) | 59 |
| Height to top of ROPS (in.) | 92.3 |
| Tire Size Industrial Front/Rear | 23 x 8.5 – 12 / 33 x 12 -16.5 |
Weight
| Total weight without ballast (lbs.) | 1,609 |
|---|
Options
| Remote Valve – 1 pair (2 outlets) |
|---|
| Detent Kit |
| Backhoe Options: Thumb, big foot options, and rubber pads |
| Snowblower: Hydraulic Chute Rotation |
| Cab |
