LS Tractor · New MT7 Series
MT7101CPS
Utility Tractors

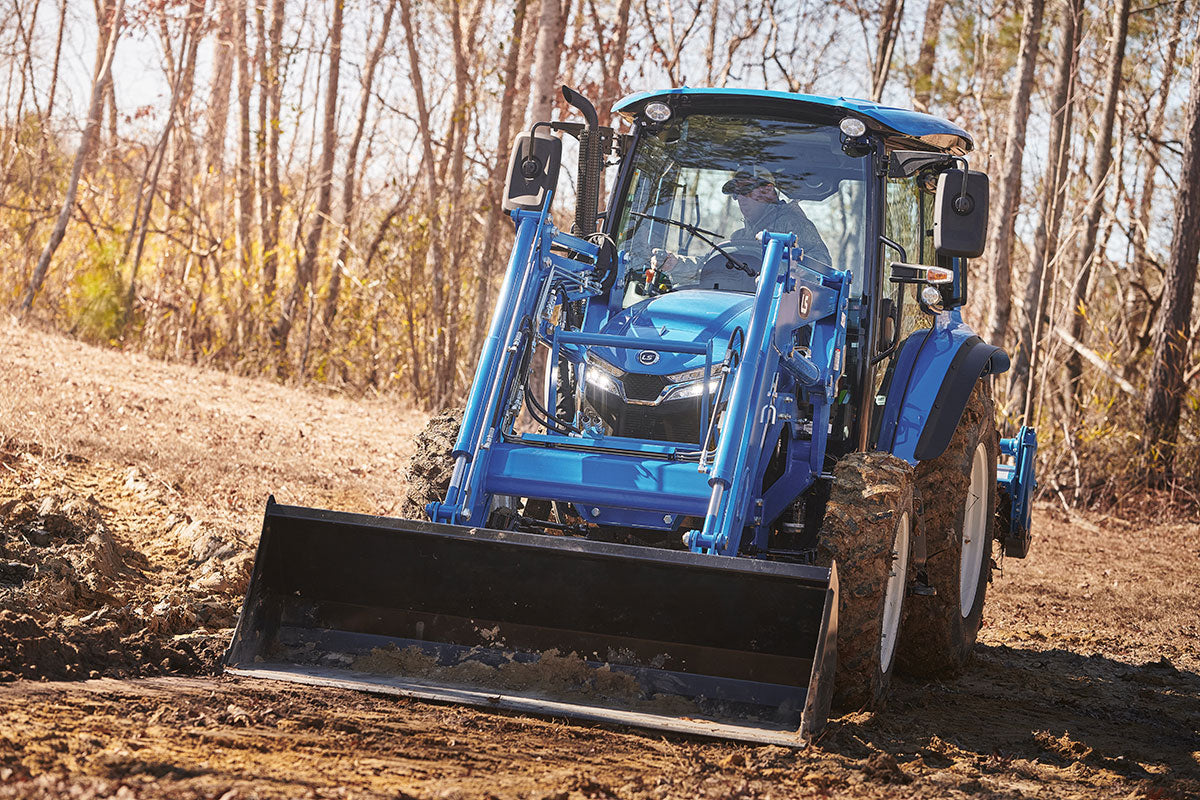

On sale, call for pricing ↗Manufacturer photos may show optional equipment. Shared LS reference angles are identified in their captions.
Explore the LS MT7101CPS from the New MT7 Series. Review the manufacturer's photos, engine and drivetrain details, and full specifications, then talk with our Athens team about the configuration for your work.
- Engine power · gross
- 100.6 HP
- PTO power
- 85.5 HP
- Engine model
- F5G
- Transmission
- Power Shuttle
Official LS Tractor dealer in Athens, Georgia.
255 Collins Industrial Blvd
The details that matter
Key features.
- Independent power take-off
- Power-shuttle transmission
- Rear hydraulic connections
Know your machine
Specifications.
LS manufacturer reference specifications. Cab, transmission, tires and attachments depend on the selected configuration. Model suffixes and measurement units are retained below.
Engine
| Type | 4 Cylinder, CRDI, Water-cooled |
|---|---|
| Model (Tier 4) | F5G |
| Engine HP (Gross) | 100.6 |
| PTO HP | 85.5 |
| Rated Speed (RPM) | 2,200 |
| Displacement (cu. in) | 206.7 |
| Fuel Tank Capacity (gal) | 30.4 |
Drive Train
| Transmission Type | Power Shuttle |
|---|---|
| No. of Speed | 24 X 24 |
| Brakes | Wet, Multi – disc |
| Forward speed (mph) | 1.0 – 23.1 |
PTO
| Type | Power Shuttle |
|---|---|
| Rear, rpm | 540 / 750 / 1,000 |
Hydraulic System
| Control System | Position/Draft |
|---|---|
| Implement pump (gpm) | 15.7 |
| Steering pump (gpm) | 6.5 |
| Total flow (gpm) | 22.2 |
| Category, 3 pt hitch | CAT II |
| Hitch Lift capacity, lbs (Hitch end) | 8,378 |
| Remote Valves | 3 pairs (Front), 2 pairs (Rear) |
Dimension
| Overall length (Frame to Link, in.) | 152.2 |
|---|---|
| Wheelbase (in.) | 90 |
| Min. overall width with tires (in.) | 78.7 |
| Height to top (in.) | 107 |
Tire Size
| Front / Rear R14 | FW: 340/70R28, RR: 460/75R38 |
|---|---|
| Front / Rear Ag | F: 13.6-24, R: 18.4-34 |
Weight
| Total weight without ballast (lbs.) | 7,985 |
|---|
Options
| Remote Valve- 1Pair (2 Outlets) Volume adjustable sectional Valve |
|---|
| Front Weight with bumper (88lb X 8) |
| Rear weight (99lb X 4) |
| Beacon Lamp |
