LS Tractor · New MT4 Series
MT473CPS
Utility Tractors

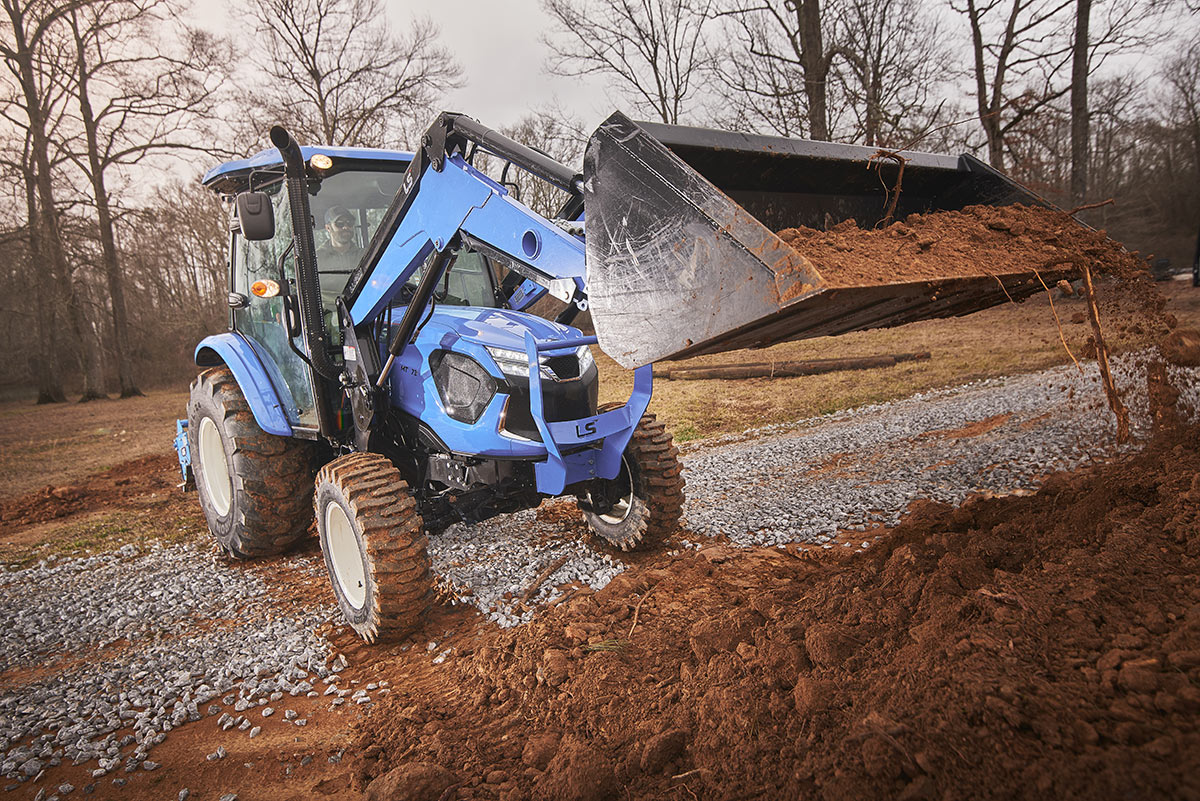

On sale, call for pricing ↗Manufacturer photos may show optional equipment. Shared LS reference angles are identified in their captions.
Explore the LS MT473CPS from the New MT4 Series. Review the manufacturer's photos, engine and drivetrain details, and full specifications, then talk with our Athens team about the configuration for your work.
- Engine power · gross
- 73 HP
- PTO power
- 62.9 HP
- Engine model
- L4C25-T
- Transmission
- Power Shuttle
Official LS Tractor dealer in Athens, Georgia.
255 Collins Industrial Blvd
Know your machine
Specifications.
LS manufacturer reference specifications. Cab, transmission, tires and attachments depend on the selected configuration. Model suffixes and measurement units are retained below.
Engine
| Type | Vertical Water-Cooled 4 Cycle Diesel Engine |
|---|---|
| Model (Tier 4) | L4C25-T |
| Engine HP (Gross) | 73 |
| PTO HP | 62.9 |
| Rated Speed (RPM) | 2,500 |
| Displacement (cu. in) | 152.85 |
| Fuel Tank Capacity (gal) | 24.3 |
Drive Train
| Transmission Type | Power Shuttle |
|---|---|
| No. of Speed | F16 X R16 |
| Brakes | Wet, Multi-disc |
| Steering | Hydrostatic Power Steering |
PTO
| Type | Independent |
|---|---|
| Rear, rpm | 540, 540E (Standard) |
Hydraulic System
| Control System | Position / Draft |
|---|---|
| Implement pump (gpm) | 14.5 |
| Steering pump (gpm) | 6.6 |
| Total flow (gpm) | 21.1 |
| Category, 3 pt hitch | CAT II |
| Hitch Lift capacity, lbs (Hitch end) | 3,483 (@ 24˝ from the Hitch end) |
| Remote Valves | 2 Pairs (Front), 2 pairs (Rear) |
Dimension
| Overall length (Frame to Link, in.) | 135 |
|---|---|
| Overall width with tires (in.) | 72.6 |
| Wheelbase (in.) | 83.1 |
| Height to top (in.) | 105.4 |
Tire Size
| Ag Front / Rear | 9.5 – 24 / 16.9 – 28 |
|---|---|
| IND Front / Rear | 10.5/80×18 10PR / 19.5Lx24 8PR |
| Large Ag Front / Rear | 11.2-24 / 16.9-30 |
| R14 Front / Rear | 320-85R20 119D / 420/75R34 142D |
Weight
| Total weight without ballast (lbs.) | 5,886 |
|---|
Standard
| Remote Valve – 2 Pairs |
|---|
| Loader Valve – 2 Pairs |
| Engine Kill Switch |
| Seat With Suspension & Armrest |
| Telescopic Lower Link |
| External Lift Control Lever |
| Drawbar |
| Linked Pedal |
| Tool Box |
Options
| Tail Pipe ROPS Vertical Kit |
|---|
| RH Step |
| DIA Rear Ballast Kit |
| Step Sub RH DIA Kit |
| Air Ride Seat Cab DIA Kit |
| Seat Assy-Fab-Ls Gray-Trg850 |
| Cab Room Mirror Cab DIA Kit |
| Gear Range TRG285 |
| 3rd Function Cab Kit |
| 3rd Function ROPS Kit |
| External Position Lever |
| Drawbar Kit General |
| Drawbar Kit Clevis |
| Remote Control Valve Spring 2S Kit |
| Remote Control Valve Spring 3S Kit |
| Remote Control Valve Detent 2S Kit |
| Remote Control Valve Detent 3S Kit |
