LS Tractor · MT3 Series
MT357H/HC
Compact Tractors

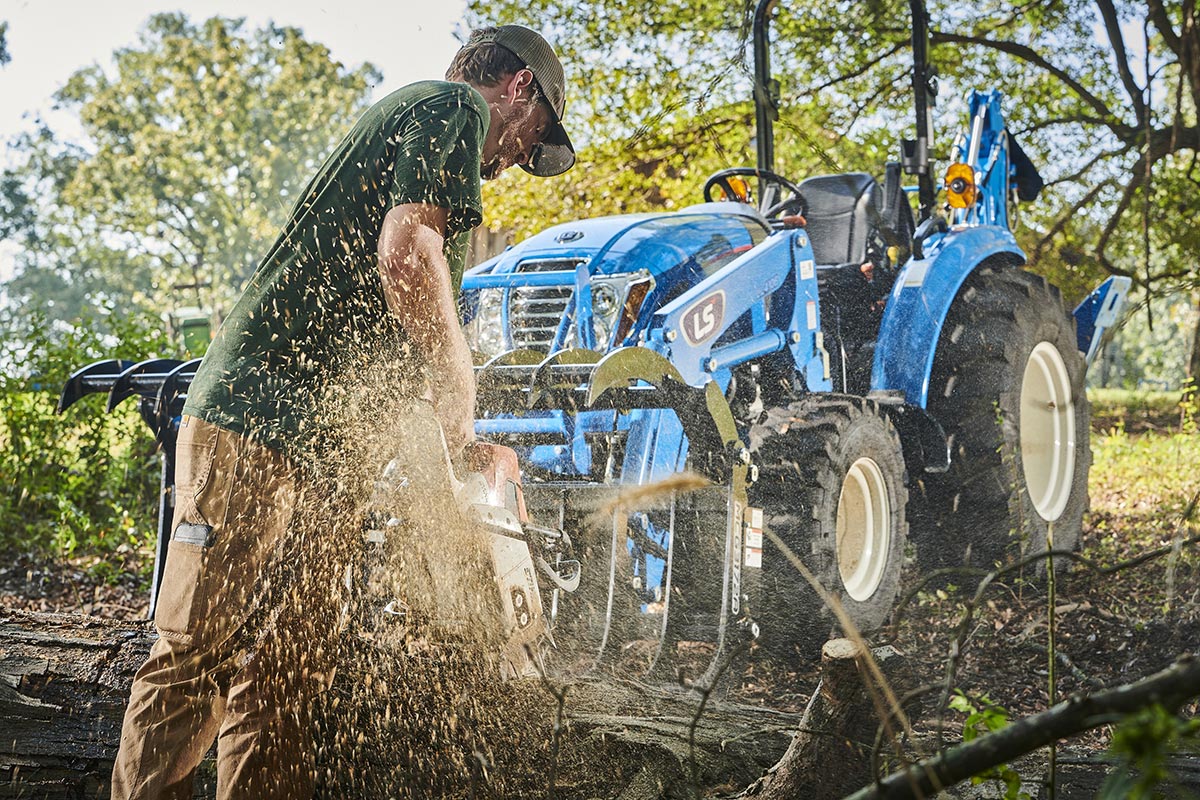

On sale, call for pricing ↗Manufacturer photos may show optional equipment. Shared LS reference angles are identified in their captions.
Explore the LS MT357H/HC from the MT3 Series. Review the manufacturer's photos, engine and drivetrain details, and full specifications, then talk with our Athens team about the configuration for your work.
- Engine power · gross
- 57 HP
- PTO power
- 48.4 Hydr / 45.6 Gear HP
- Engine model
- L3C19-T
- Transmission
- Synchro shuttle / HST
Official LS Tractor dealer in Athens, Georgia.
255 Collins Industrial Blvd
The details that matter
Key features.
- Four-wheel drive
- Independent power take-off
- Folding rollover protection structure
- Three-point hitch
- Rubber-surfaced operator platform
- Flat operator platform
- Adjustable steering position
- Accessible fuel filling
Know your machine
Specifications.
LS manufacturer reference specifications. Cab, transmission, tires and attachments depend on the selected configuration. Model suffixes and measurement units are retained below.
Engine
| Type | 3-Cylinder, liquid-cooled, Diesel, TC, CRDI |
|---|---|
| Model (Tier 4) | L3C19-T |
| Engine HP (Gross) | 57 |
| PTO HP | 48.4 Hydr / 45.6 Gear |
| Rated Speed (RPM) | 2,600 |
| Displacement (cu. in) | 114.7 |
| Fuel Tank Capacity (gal) | 12.4 (CABIN) / 10.6 (ROPS) |
| Alternator (V-A) | 12V – 70 Amps |
Drive Train
| Transmission Type | Synchro shuttle / HST |
|---|---|
| No. of Speed | F16 x R16(GEAR) / 3 Ranges(HST) |
| Brakes | Wet, Multi-disc |
| Steering | Hydrostatic Power Steering |
PTO
| Type | Independent |
|---|---|
| Rear, rpm | 540 (Standard) |
Hydraulic System
| Control System | Position / Draft |
|---|---|
| Implement pump (gpm) | 8.2 |
| Steering pump (gpm) | 4.1 Gear / 5.5 Hydro / 6.8 Hydro Cab |
| Total flow (gpm) | 12.3 Gear /13.7 Hydro / 15.0 Hydro Cab |
| Category, 3 pt hitch | CAT 2 |
| Hitch Lift capacity, lbs (Hitch end) | 2,755 |
| Remote Valves | 2 Pairs (Front), 2 Pairs (Rear) (Detent, Standard) |
Dimension
| Overall length (Frame to Link, in.) | 133 |
|---|---|
| Wheelbase (in.) | 73.2 |
| Height to top (in.) | 95 ROPS / 90 Cab |
Tire Size
| Ag Front / Rear | 9.5 – 16 / 13.6 – 24 |
|---|---|
| IND Front / Rear | 12 – 16.5 / 17.5L – 24 |
| Turf Front / Rear | 28 x 8.5 – 15 / 41 x 14 – 20 |
Weight
| Total weight without ballast (lbs.) | 3,869 – 4,446(CAB) |
|---|
Options
| Beacon Lamp Kit |
|---|
| Rear View Mirror |
| Sun Screen |
| Audio Assy-without Bluetooth |
| Audio assy-Bluetooth |
