LS Tractor · MT3E Series
MT355E/HE
Compact Tractors

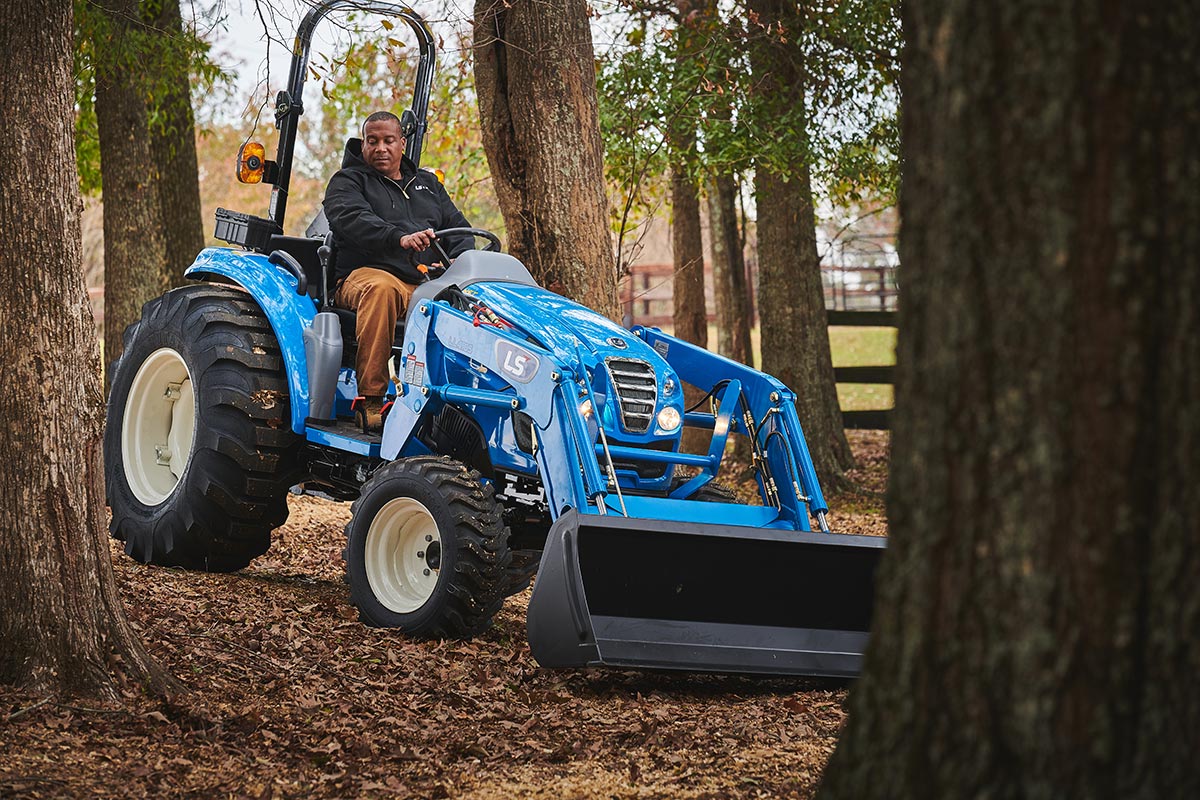

On sale, call for pricing ↗Manufacturer photos may show optional equipment. Shared LS reference angles are identified in their captions.
Explore the LS MT355E/HE from the MT3E Series. Review the manufacturer's photos, engine and drivetrain details, and full specifications, then talk with our Athens team about the configuration for your work.
- Engine power · gross
- 55 HP
- PTO power
- 44.0 – 46.7 HP
- Engine model
- L3C19-T
- Transmission
- Synchro Shuttle/Constant Mesh
Official LS Tractor dealer in Athens, Georgia.
255 Collins Industrial Blvd
The details that matter
Key features.
- Four-wheel drive
- Dual-pedal drive controls
- Independent power take-off
- Folding rollover protection structure
- Three-point hitch
- Accessible hitch controls
- Cruise control
- Adjustable steering position
- Accessible fuel filling
Know your machine
Specifications.
LS manufacturer reference specifications. Cab, transmission, tires and attachments depend on the selected configuration. Model suffixes and measurement units are retained below.
Engine
| Type | Vertical Water Cooled 4 Cycle Diesel Engine |
|---|---|
| Model (Tier 4) | L3C19-T |
| Engine HP (Gross) | 55 |
| PTO HP | 44.0 – 46.7 |
| Rated Speed (RPM) | 2,600 |
| Displacement (cu. in) | 114.7 |
| Fuel Tank Capacity (gal) | 13.7 |
Drive Train
| Transmission Type | Synchro Shuttle/Constant Mesh |
|---|---|
| No. of Speed | F8 × R8 |
| Brakes | Wet, Multi-disc |
| Steering | Hydrostatic Power Steering |
PTO
| Type | Independent |
|---|---|
| Rear, rpm | 540 (Standard) |
Hydraulic System
| Control System | Position |
|---|---|
| Implement pump (gpm) | 8.2 |
| Steering pump (gpm) | 4.8 |
| Total flow (gpm) | 13.0 |
| Category, 3 pt hitch | CAT 2 |
| Hitch Lift capacity, lbs (Hitch end) | 2,910 |
| Remote Valves | 2 pairs (Front), 1/2 pairs (Rear, Option) |
Dimension
| Overall length (Frame to Link, in.) | 125 |
|---|---|
| Overall width with tires (in.) | 68 |
| Wheelbase (in.) | 74.8 |
| Height to top (in.) | 100 |
Tire Size
| Ag Front / Rear | 9.5-16 / 14.9-24 |
|---|---|
| IND Front / Rear | 10.0-16.5 / 17.5L-24 |
| Turf Front / Rear | 29 x 12.50-15 / 44 x 18.00-20 |
| Narrow Ag Front / Rear | 7.0 – 14 / 9.5 – 24 |
Weight
| Total weight without ballast (lbs.) | 3,724 |
|---|
Options
| Remote Valve- 1 pair (2 outlets) or 2 pair (4 outlets) |
|---|
| Work Light |
| Rear work lamp |
| Horn |
| 7 pin electrical connector |
