LS Tractor · New MT2E Series
MT226HEC
Compact Tractors

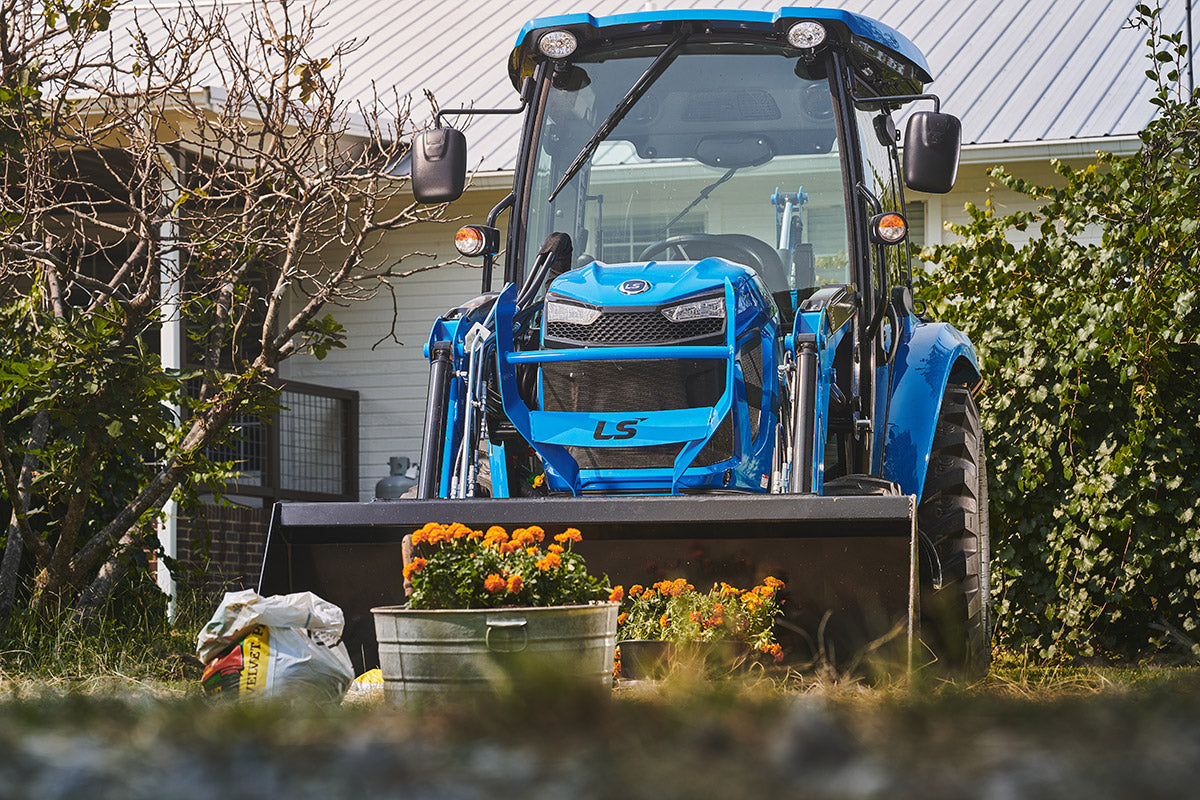

On sale, call for pricing ↗Manufacturer photos may show optional equipment. Shared LS reference angles are identified in their captions.
Explore the LS MT226HEC from the New MT2E Series. Review the manufacturer's photos, engine and drivetrain details, and full specifications, then talk with our Athens team about the configuration for your work.
- Engine power · gross
- 24.4 HP
- PTO power
- 19 HP
- Engine model
- YANMAR
- Transmission
- HST
Official LS Tractor dealer in Athens, Georgia.
255 Collins Industrial Blvd
The details that matter
Key features.
- Supportive operator seating
- Air-conditioned cab configuration
- Additional cab headroom
- Open forward sight lines
Know your machine
Specifications.
LS manufacturer reference specifications. Cab, transmission, tires and attachments depend on the selected configuration. Model suffixes and measurement units are retained below.
Engine
| Type | 3 Cylinder, Liquid-cooled, Diesel, NA, IDI |
|---|---|
| Model (Tier 4) | YANMAR |
| Engine HP (Gross) | 24.4 |
| PTO HP | 19 |
| Rated Speed (RPM) | 2,400 |
| Displacement (cu. in) | 100.2 |
| Fuel Tank Capacity (gal) | 11.4 |
| Alternator (V-A) | 12V – 55 Amps |
Drive Train
| Transmission Type | HST |
|---|---|
| No. of Speed | 3 Ranges |
| Brakes | Wet, Multi-disc |
| Steering | Hydrostatic Power Steering |
PTO
| Type | Independent |
|---|---|
| Rear, rpm | 540 (Standard) |
Hydraulic System
| Control System | Position |
|---|---|
| Implement pump (gpm) | 6.1 |
| Steering pump (gpm) | 4.6 |
| Total flow (gpm) | 10.7 |
| Category, 3 pt hitch | CAT I |
| Hitch Lift capacity, lbs (Hitch end) | 1,808 |
| Remote Valves | 1 Pair |
Dimension
| Overall length (Frame to Link, in.) | 125 |
|---|---|
| Overall width with tires (in.) | 66 |
| Wheelbase (in.) | 69 |
| Height to top (in.) | 90 |
Tire Size
| Ag Front / Rear | 7 – 14 / 11.2 – 24 |
|---|---|
| IND Front / Rear | 27X8.50-15 / 43X16.00-20 |
| VT Front / Rear | 27X8.50-15 / 43X16.00-20 |
| Turf Front / Rear | 25X8.50-14 / 41X14.00-20 |
Weight
| Total weight without ballast (lbs.) | 3,609 |
|---|
Standard
| Remote valve 1st |
|---|
| Loader valve 2pair |
| TF LCD Instrument Panel |
| Lower link – General |
| Stabilizer – Check Link |
| Head Lamp (LED) |
| 12V Outlet |
| Front Wiper |
| Beacon Harness (w/o Beacon) |
| Rubber Mat |
| Seat with Suspension |
| LH Side Step |
| Room Mirror |
Options
| Remote valve 2nd |
|---|
| Cruise Control |
| Loader valve Extension Pipe |
| Mid PTO |
| Lower link – Telescopic |
| Clevis Drawbar |
| Beacon Lamp |
| 7-pole |
| Horn |
| Fuel Cap(Locking Type) |
| Block Heater |
| External Lift Control Lever |
| Front/Rear Work Lamp (LED) |
| Escort LAMP (LED) |
| Bluetooth Module(Radio, USB) |
| Rear Wiper |
| Engine Kill Switch(Rear Fender) |
| Armrest |
| RH Side Step |
| Side Mirror |
| Tool Box |
