LS Tractor · MT2 Series
MT226HC
Compact Tractors

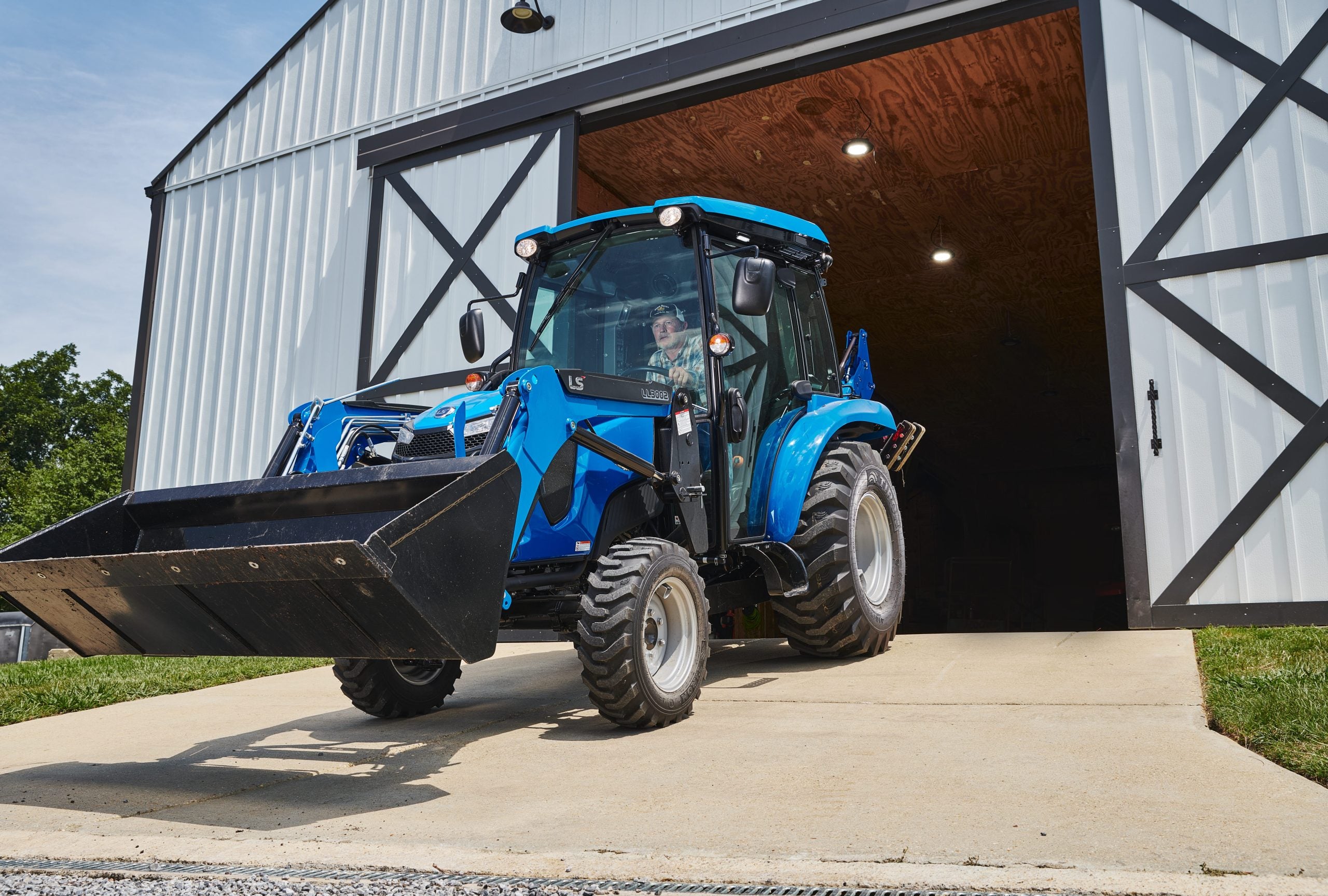

On sale, call for pricing ↗Manufacturer photos may show optional equipment. Shared LS reference angles are identified in their captions.
Explore the LS MT226HC from the MT2 Series. Review the manufacturer's photos, engine and drivetrain details, and full specifications, then talk with our Athens team about the configuration for your work.
- Engine power · gross
- 23.9 HP
- PTO power
- 19 HP
- Engine model
- YANMAR
- Transmission
- HST
Official LS Tractor dealer in Athens, Georgia.
255 Collins Industrial Blvd
The details that matter
Key features.
- Supportive operator seating
- Air-conditioned cab configuration
- Additional cab headroom
- Open forward sight lines
- Cruise control
Know your machine
Specifications.
LS manufacturer reference specifications. Cab, transmission, tires and attachments depend on the selected configuration. Model suffixes and measurement units are retained below.
Engine
| Type | 3 Cylinder Liquid-cooled Diesel, NA, CRDI |
|---|---|
| Model (Tier 4) | YANMAR |
| Engine HP (Gross) | 23.9 |
| PTO HP | 19 |
| Rated Speed (RPM) | 2,400 |
| Displacement (cu. in) | 100.2 |
| Fuel Tank Capacity (gal) | 11.4 |
| Alternator (V-A) | 12V – 55 Amps |
Drive Train
| Transmission Type | HST |
|---|---|
| No. of Speed | 3 Ranges |
| Brakes | Wet, Multi-disc |
| Steering | Hydrostatic Power Steering |
PTO
| Type | Independent |
|---|---|
| Rear, rpm | 540 (Standard) |
Hydraulic System
| Control System | Position |
|---|---|
| Implement pump (gpm) | 6.1 |
| Steering pump (gpm) | 4.6 |
| Total flow (gpm) | 10.7 |
| Category, 3 pt hitch | CAT I |
| Hitch Lift capacity, lbs (Hitch end) | 1,808 |
| Remote Valves | 1 Pair |
Dimension
| Overall length (Frame to Link, in.) | 125 |
|---|---|
| Overall width with tires (in.) | 66 |
| Wheelbase (in.) | 69 |
| Height to top (in.) | 90 |
Tire Size
| Ag Front / Rear | 7 – 14 / 11.2 – 24 |
|---|---|
| IND Front / Rear | 27X8.50-15 / 43X16.00-20 |
| VT Front / Rear | 27X8.50-15 / 43X16.00-20 |
| Turf Front / Rear | 25X8.50-14 / 41X14.00-20 |
Weight
| Total weight without ballast (lbs.) | 3,649 |
|---|
Standard
| Remote valve 1st |
|---|
| Loader valve 3pair |
| E/G RPM Interlocking Switch(Joystick) |
| Cruise Control & Linked Pedal |
| Lowerlink – Telescopic |
| Stabilizer – Check Link |
| External Lift Control Lever |
| Drawbar |
| Head Lamp(LED) |
| TF LCD Instrument Panel |
| 12V Outlet |
| Engine Kill Switch(Rear Fender) |
| Rubber Mat |
| Seat with Suspension & Armrest |
| LH/RH Side Step |
| Tool Box |
Options
| 3rd Function Extension Pipe |
|---|
| Remote valve 2nd |
| Mid PTO |
| Clevis Drawbar |
| Rear Work Lamp |
| 7-pole |
| Horn |
| Fuel Cap(Locking Type) |
| Block Heater |
