LS Tractor · New MT2E Series
MT226E
Compact Tractors

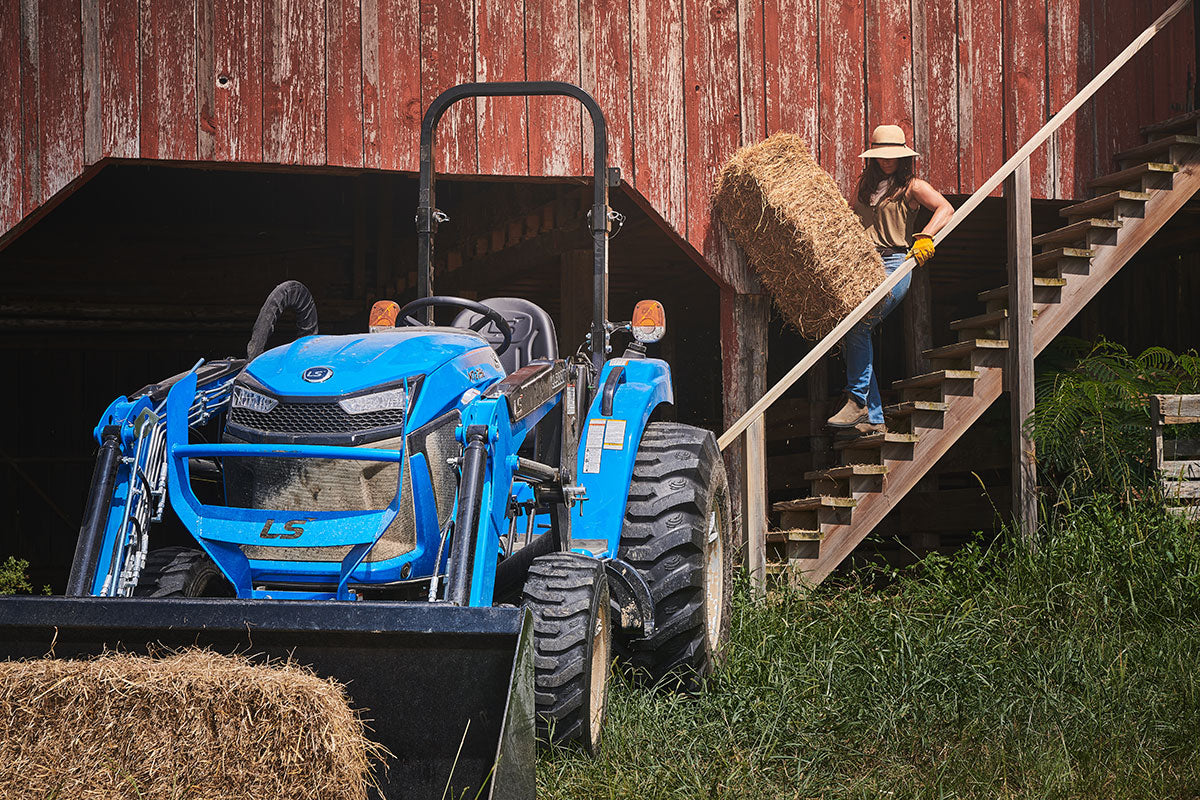

On sale, call for pricing ↗Manufacturer photos may show optional equipment. Shared LS reference angles are identified in their captions.
Explore the LS MT226E from the New MT2E Series. Review the manufacturer's photos, engine and drivetrain details, and full specifications, then talk with our Athens team about the configuration for your work.
- Engine power · gross
- 24.6 HP
- PTO power
- 19.2 HP
- Engine model
- MHI
- Transmission
- Synchro Shuttle
Official LS Tractor dealer in Athens, Georgia.
255 Collins Industrial Blvd
The details that matter
Key features.
- Supportive operator seating
Know your machine
Specifications.
LS manufacturer reference specifications. Cab, transmission, tires and attachments depend on the selected configuration. Model suffixes and measurement units are retained below.
Engine
| Type | 3 Cylinder, Liquid-cooled, Diesel, NA, IDI |
|---|---|
| Model (Tier 4) | MHI |
| Engine HP (Gross) | 24.6 |
| PTO HP | 19.2 |
| Rated Speed (RPM) | 2,500 |
| Displacement (cu. in) | 80.4 |
| Fuel Tank Capacity (gal) | 10.6 |
| Alternator (V-A) | 12V – 50 Amps |
Drive Train
| Transmission Type | Synchro Shuttle |
|---|---|
| No. of Speed | F12 X R12 |
| Brakes | Wet, Multi-disc |
| Steering | Hydrostatic Power Steering |
PTO
| Type | Independent |
|---|---|
| Rear, rpm | 540 (Standard) |
Hydraulic System
| Control System | Position |
|---|---|
| Implement pump (gpm) | 7.9 |
| Steering pump (gpm) | 4.6 |
| Total flow (gpm) | 12.5 |
| Category, 3 pt hitch | CAT I |
| Hitch Lift capacity, lbs (Hitch end) | 1,808 |
| Remote Valves | Option |
Dimension
| Overall length (Frame to Link, in.) | 119 |
|---|---|
| Overall width with tires (in.) | 66 |
| Wheelbase (in.) | 66 |
| Height to top (in.) | 95 |
Tire Size
| Ag Front / Rear | 7 – 14 / 11.2 – 24 |
|---|---|
| IND Front / Rear | 27X8.50-15 / 43X16.00-20 |
| VT Front / Rear | 27X8.50-15 / 43X16.00-20 |
| Turf Front / Rear | 25X8.50-14 / 41X14.00-20 |
Weight
| Total weight without ballast (lbs.) | 2,985 |
|---|
Standard
| Loader valve 2pair |
|---|
| TF LCD Instrument Panel |
| Lower link – General |
| Stabilizer – Check Link |
| Head Lamp(LED) |
| 12V Outlet |
| Rubber Mat |
| LH Side Step |
Options
| Remote valve 1st / 2nd |
|---|
| Cruise Control |
| Lower link – Telescopic |
| Mid PTO |
| External Lift Control Lever |
| Clevis Drawbar |
| Rear Work Lamp |
| 7-pole |
| Horn |
| Engine Kill Switch(Rear Fender) |
| Fuel Cap(Locking Type) |
| RH Side Step |
| Seat with Suspension & Armrest |
| Block Heater |
| Tool Box |
