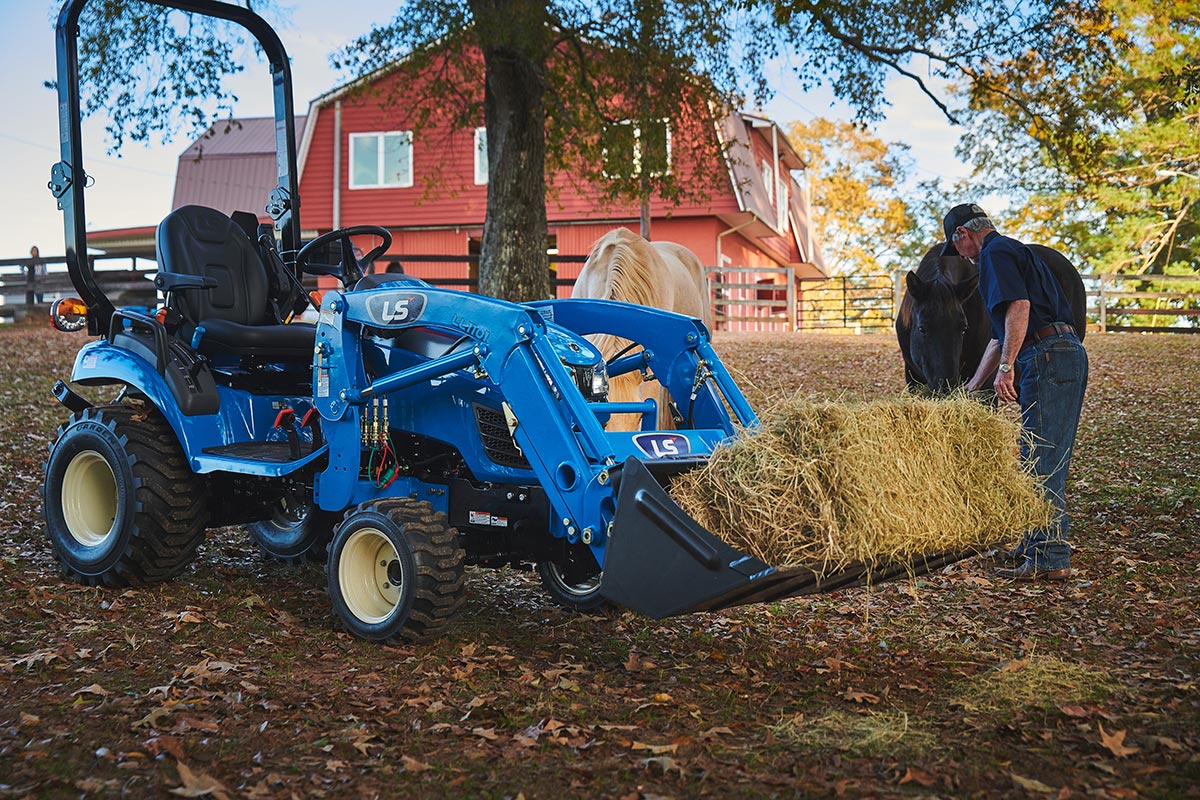

LS Tractor · MT1 Series
MT122
Sub-Compact Tractors
On sale, call for pricing ↗Manufacturer photos may show optional equipment. Shared LS reference angles are identified in their captions.
Explore the LS MT122 from the MT1 Series. Review the manufacturer's photos, engine and drivetrain details, and full specifications, then talk with our Athens team about the configuration for your work.
- Engine power · gross
- 21.5 HP
- PTO power
- 15.0 HP
- Engine model
- Yanmar 3TNV76F
- Transmission
- Hydrostatic Drive
Official LS Tractor dealer in Athens, Georgia.
255 Collins Industrial Blvd
The details that matter
Key features.
- Four-wheel drive
- Dual-pedal drive controls
- Selectable PTO output
- Mid-mounted PTO provision
- Hydraulic power steering
- Folding rollover protection structure
- Three-point hitch
- Accessible hitch controls
- Mower-height adjustment
- On-board tool storage
- Easy-access engine hood
- Reversible seat arrangement
- Supportive operator seating
Know your machine
Specifications.
LS manufacturer reference specifications. Cab, transmission, tires and attachments depend on the selected configuration. Model suffixes and measurement units are retained below.
Engine
| Type | 3-cylinder, Indirect-injection, Water-cooled |
|---|---|
| Model (Tier 4) | Yanmar 3TNV76F |
| Engine HP (Gross) | 21.5 |
| PTO HP | 15.0 |
| Rated Speed (RPM) | 3,000 |
| Displacement (cu. in) | 68.0 |
| Fuel Tank Capacity (gal) | 6.6 |
| Alternator (V-A) | 12V – 40 |
Drive Train
| Transmission Type | Hydrostatic Drive |
|---|---|
| No. of Speed | 2 Ranges |
| Brakes | Wet, Multi-disc |
| Steering | Hydrostatic Power Steering |
PTO
| Type | Independent |
|---|---|
| Mid PTO | Standard (2500 rpm) |
| Rear PTO | Standard (540 rpm) |
Hydraulic System
| Control System | Position |
|---|---|
| Implement pump (gpm) | 4.6 |
| Steering pump (gpm) | 2.1 |
| Total flow (gpm) | 6.7 |
| Category, 3 pt hitch | CAT I |
| Hitch Lift capacity, lbs (Hitch end) | 992 (728 @ 24”) |
Dimension
| Overall length (Frame to Link, in.) | 97 |
|---|---|
| Overall width with tires (in.) | 47 |
| Wheelbase (in.) | 56 |
| Height to top of ROPS (in.) | 87 |
| Tire Size Industrial Front/Rear | 18×8.5 – 10/26 x 12.0 – 12 |
| Tire Size Versa Turf Front/Rear: | 18×8.5 – 10/26 x 12.0 – 12 |
Tire Size
| Ag Front / Rear | 7 – 14 / 11.2 – 24 |
|---|---|
| IND Front / Rear | 27X8.50-15 / 43X16.00-20 |
| Ag Front / Rear | 7 – 14 / 11.2 – 24 |
| IND Front / Rear | 27X8.50-15 / 43X16.00-20 |
| VT Front / Rear | 27X8.50-15 / 43X16.00-20 |
| Turf Front / Rear | 25X8.50-14 / 41X14.00-20 |
Weight
| Total weight without ballast (lbs.) | 1,433 |
|---|
Options
| Draw Bar |
|---|
| Rear Remote Valve – 1 Set |
| Work Light |
| Detent |
| Cab |
